WTG-H200 Arc Gate opening Meter

1. Product Introduction​

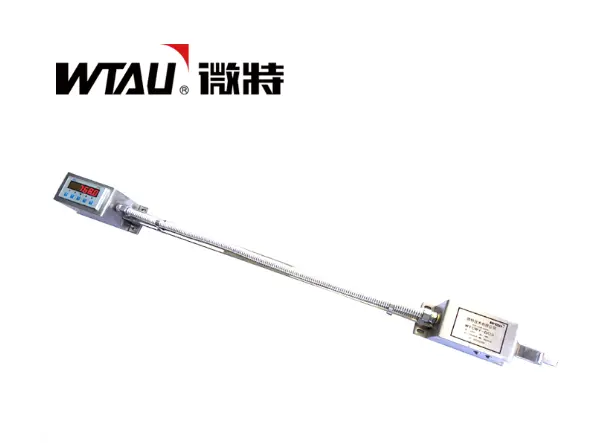

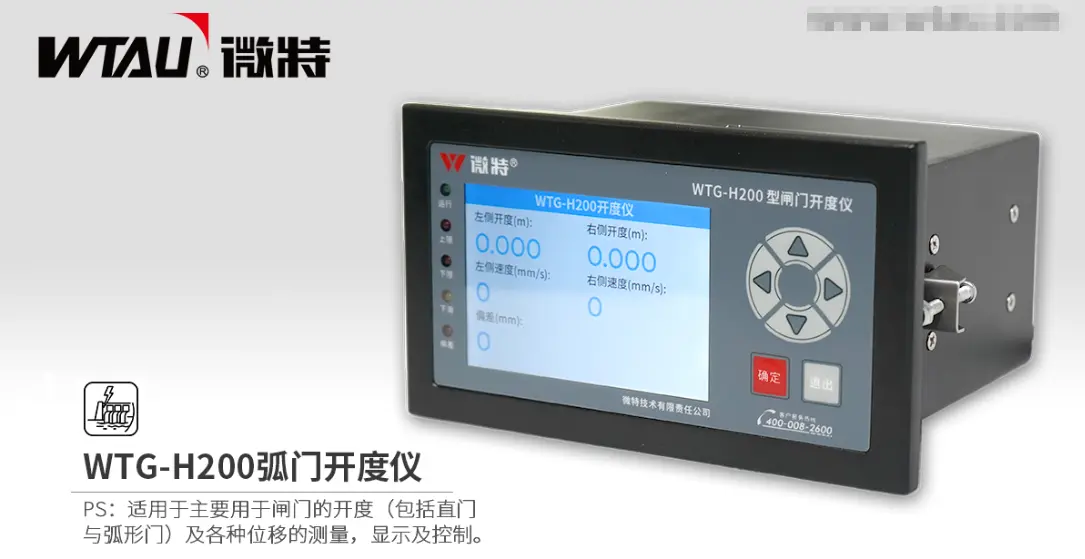

​WTG-H200 Arc Gate opening Meter​
The industrial-grade gate opening measurement and control equipment developed by Weite Technology is specifically designed forPrecise measurement of the opening degree of the arc-shaped gate. The system consists ofMain control machinewithArc gate opening degree sensorThe composition, by integrating attitude detection and vibration filtering technology, solves the problem of accuracy distortion in traditional measurement under strong vibration environments.

2. Main functions​

​Full-process intelligent monitoring of arc door opening degree​

• ​High-precision attitude analysis​：
  • The dual-axis inclinometer (with a resolution of 0.001° to 0.005°) detects the arc gate displacement and the deviation of the left and right opening in real time (with an accuracy of ±0.01°).
• ​Anti-interference dynamic calibration​：
  • Built-in vibration sensor and digital filtering algorithm actively eliminate data fluctuations caused by door body shaking.
• ​Remote cluster management​：
  • Supports DCS/ configuration software access, multi-terminal monitoring on computers and mobile phones, achieving less on-site personnel.
• ​Intelligent security protection​：
  • The main control board self-recovery circuit (Watch Dog) automatically restarts when the program is deadlocked.

​3. Scope of application​

​All-domain adaptation under harsh working conditions​

• ​Applicable equipment​：
  • Arc door/flat door/A-frame door hoist, door machine, bridge machine, etc.
  • Screw-type/winch type/hydraulic type/electric opening and closing equipment.
• ​Environmental tolerance​：
  • Temperature: -20℃ to +60℃; Humidity: ≤90%RH (No condensation)

4. Core advantages​

​Six guarantees for the verification of water conservancy projects​

​✅ monitoring accuracy breakthrough​

• With a 1mm-level inclination detection accuracy, it is suitable for ultra-large stroke arc doors.

​✅ reliable under extreme conditions​

• IP54 protection + triple anti-interference design (high water pressure/harsh temperature/wide range).

​✅ intelligent safety redundancy​

• Watchdog self-recovery circuit + power-off memory.

​✅ flexible expansion​

• ≤ 8-channel control output, embedded design.

5. Technical parameters​

​​​

6. Relevant configurations​

​Description of Core Components​

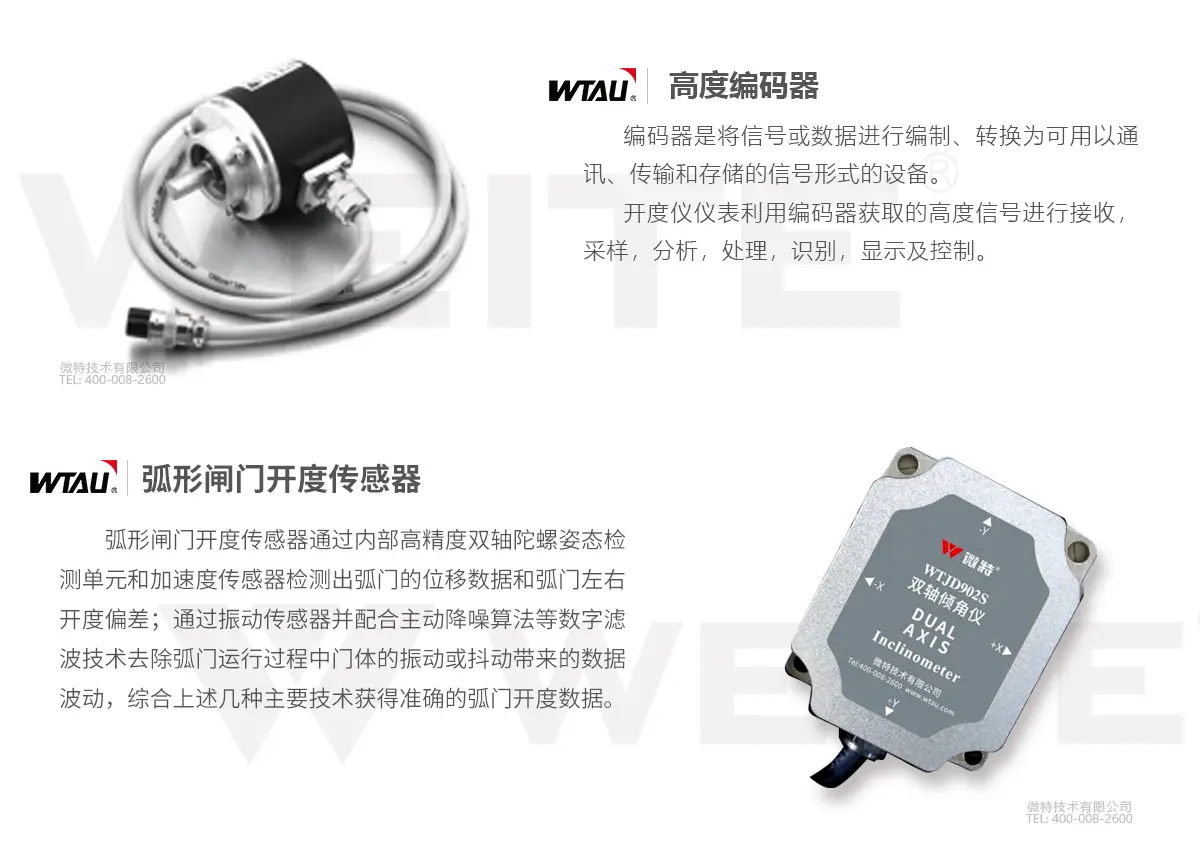

• ​WTJD902S dual-axis inclinometer​
  • ​Core componentHigh-precision gyroscope + three-axis accelerometer
  • ​Core technology​：
    The active noise reduction algorithm eliminates vibration interference.
    ±30° inclination range (±0.01° accuracy).
  • ​Installation features​：
    Four-corner bolt fixation (resistant to mechanical stress);
    Protection grade IP57 (suitable for direct exposure conditions).
• ​System connection​：
  • The main control unit is connected to the sensorShielded twisted pair cableConnection, maximum transmission distance 500 meters;
  • SupportOnline recalibration(The "Simulation Recalibration" function on the main control machine interface).

note​：

1. Arc gate measurement requires cooperationGate parameter setting(Main control machine interface functions)
2. Recommendations for Heavy-duty GatesDual sensor configuration on both sides(See the "Left/Right Weight Calibration" function).
