ZX- Shaft Pin Type weight sensor

The ZX pin-type weight sensor is a high-performance force measurement device specially designed by Weite Technology Co., Ltd. for lifting equipment. Through an innovative pin-type structure design, it provides precise weight monitoring and safety guarantees for various types of lifting machinery.

Product Overview

The ZX pin-type weight sensor is made of high-strength alloy steel and features precise manufacturing processes. It can directly replace the original equipment pins, enabling simple installation without altering the equipment structure. The product features an IP66 protection rating and is suitable for various harsh industrial environments. It is an indispensable core component in the safety monitoring system of lifting equipment.

Core functional features

High-precision measurement performance

• ​Precise monitoringThe comprehensive error is only ±31TP3 tf.s, and the sensitivity reaches 1.0±0.005mV/V
• ​Wide measurement rangeThe rated load ranges from 10t to 50t, meeting different lifting requirements
• ​Strong overload capacitySafe overload 150%F.S, ultimate overload 200%F.S, ensuring the safe operation of the equipment

Outstanding environmental adaptability

• ​Wide-temperature operationThe operating temperature range is from -30℃ to +70℃, suitable for extreme climate conditions
• ​High protection levelIP66 protection standard, effectively preventing dust and moisture from entering
• ​Stable and reliableMade of high-quality alloy steel, it ensures long-term stable operation

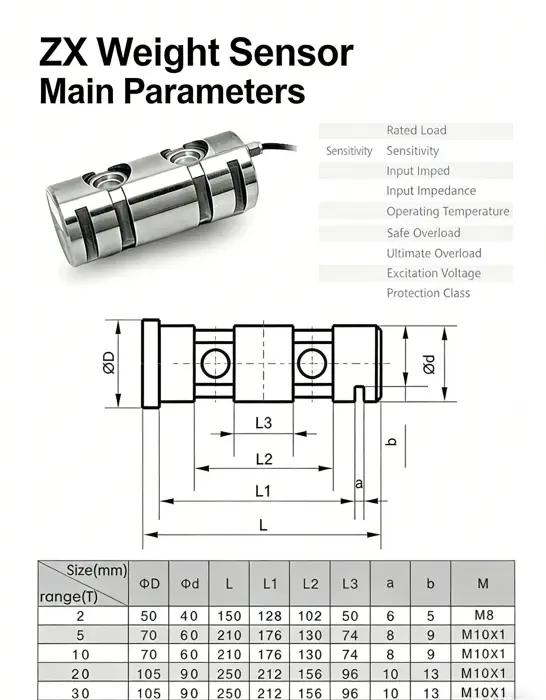

Technical parameters

Electrical characteristics

• ​Sensitivity​：1.0±0.005mV/V
• ​Comprehensive error​：±3%F.S
• ​Input impedance​：750±20Ω
• ​Output impedance​：703±3Ω
• ​Insulation resistance​：≥5000MΩ
• ​Recommended excitation voltage​：10-12V DC
• ​Maximum excitation voltage​：15V DC

Mechanical properties

• ​Safe overload​：150%F.S
• ​Ultimate overload​：200%F.S
• ​Protection grade​：IP66
• ​Working temperature​：-30℃～+70℃

Installation and Application

Convenient installation method

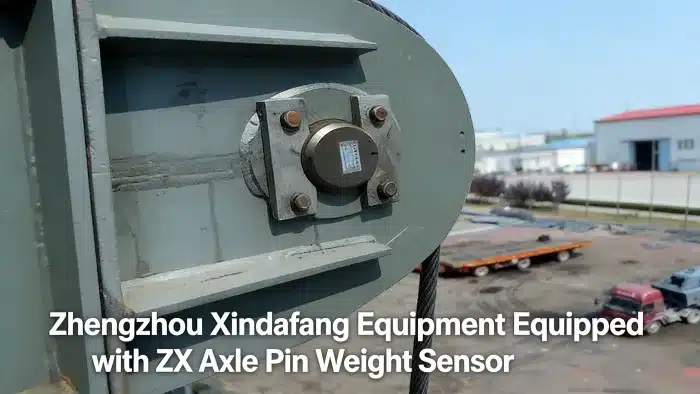

The ZX pin-type weight sensor is installed at the pin position of the force-bearing fixed pulley on the lifting rope, directly replacing the original pin installation position. The fixed pulley is in close contact with the shaft pin sensor. When the fixed pulley is subjected to force, the part in close contact with the sensor will generate a force effect, causing the sensor to deform and thereby output the corresponding modulus value to detect the force condition.

Wide application fields

• ​All kinds of lifting equipmentIt is applicable to lifting equipment with rigging, connecting forks, lifting rings, etc
• ​Port handling machineryContainer cranes, portal cranes, etc
• ​Construction machinery and equipmentTower cranes, crawler cranes, etc
• ​Industrial lifting equipmentBridge cranes, gantry cranes, etc

Product advantages

Stable and reliable

With reliable precision, a wide measurement range, and a protection grade of IP66, it is suitable for harsh outdoor environments and ensures stable and accurate weight monitoring under various working conditions.

Easy to install

The installation method of directly replacing the original shaft pin does not require any change to the original structure of the equipment. The installation is simple and fast, greatly reducing the time and cost of equipment renovation.

Quality assurance

The Weite ZX pin-type weight sensor has undergone strict quality inspection and performance testing to ensure that each product meets industrial application standards. We offer comprehensive technical support and services to provide reliable guarantees for the safe operation of lifting equipment.
