WTDJ- Aviation Plug

1. Product Introduction​

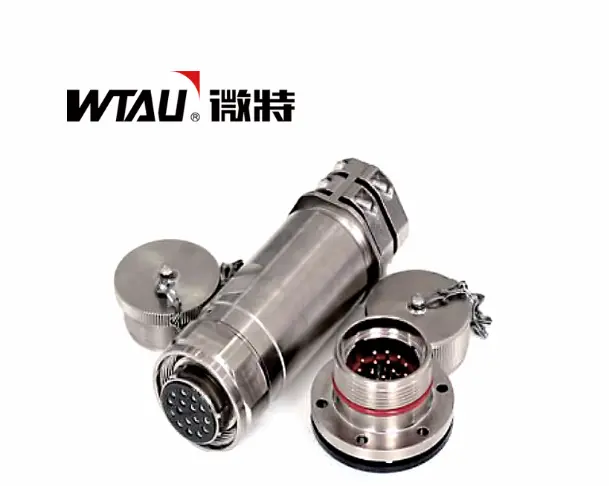

WTDJ- Aviation Plug ​
Weite Technology is specifically designed forDeep-water hydraulic beam grabA highly reliable electrical connection solution designed. The aviation plug adopts military-grade sealing technology and is compatibleWT-DF type waterproof sealed junction boxCompositionDouble composite sealing systemResistant to underwater7MPaPressure environment, completely eliminating the leakage risk of cable connections in deep-water equipment.

​2. Main functions​

​Connection guarantee in deep-water environments

​

• ​Sealed electrical connection​
  Purified cable cover treatment (contact resistance < 2mΩ), supporting 20A current transmission;
  5-key anti-reverse polarity design.
• ​Triple dynamic seal​
  → Glass insulator + silicone rubber sealing ring + 304 stainless steel shell (wall thickness 10mm);
  Withstand a water pressure of 7MPa (equivalent to a water depth of 700 meters).
• ​Protection against extreme environments​
  Passed the rigorous tests of high temperature (500℃) and low pressure (4.39kPa).

​3. Scope of application​

​Core electrical hubs under harsh working conditions​

• ​Core scene​：
  ► Hydraulic grab beam underwater cable transfer
  ► Power transmission interface for ship thrusters
  ► Wiring of sensor clusters on offshore platforms
• ​Adaptation parameters​：
  ▶ Voltage: ≤500V; Withstand voltage: 1500V

​4. Core advantages​

​The irreplaceability of deep-sea engineering​

​✅ never-failing seal​

• ​Glass sealing technologyMolecular-level fusion of insulator and metal contact (3000MΩ insulation resistance);
• ​Dynamic compensation for double O-ringsThe sealing performance increases with pressure (measured at 7MPa).

​✅ fool-proof security​

• 5-key physical error-proof structure.

​✅ wide range environmental tolerance​

• It has passed the triple limit verification of 4.39kPa low pressure, high temperature and humid heat.
