WTM-B200 Hydropower Station Comprehensive Monitoring Instrument

1. Product Introduction​

​WTM-B200 Hydropower Station Comprehensive Monitoring Instrument​
The industrial-grade multi-functional monitoring instrument of Weite Technology integrates electronic technology, microcomputer control and experience in lifting machinery. Specially designed for water conservancy engineering equipmentEight-channel integrated monitoring hubBy collecting key parameters such as weight, height and wind speed, intelligent safety control of the hoist opening and closing machine is achieved.

2. Main functions​

​Multi-source signal collaborative monitoring and intelligent decision-making​

• ​All-domain data fusion​
  Synchronous monitoringWeight/Height/wind speed/wind direction/Angle/amplitude/temperatureEight types of signals are used to calculate the comprehensive working conditions of the equipment in real time.
• ​Precise execution control​
  6-channel relay output, full Chinese LCD display, simple and intuitive adjustment.
• ​Intelligent security protection​
  ► Weight sudden change predicts winch overload
  When wind speed exceeds the limit, freezing occurs and high-altitude hoisting is carried out
  ► Angle deviation warning: Door body tilt
• ​Remote Internet of Things expansion​
  Reserve an RS485/4-20mA interface for seamless integration with DCS/ configuration software systems.

3. Scope of application​

​Core monitoring terminal under harsh working conditions​

• ​Applicable equipment​：
  ► Hoist type gate opening and closing machine (flat gate/arc gate/A-frame gate)
  ► Portal crane/bridge ship unloader
• ​Environmental tolerance​：
  Wide temperature range: -20℃ to +60℃; 90%RH; Humidity: IP64 protection

4. Core advantages​

​The three-dimensional competitiveness of hydropower station verification​

​✅ Expand unbounded​

• ​8-channel relays + dual communication interfacesCompatible with new sensors and remote centralized control

​✅ stable and reliable​

• It is subject to strict multi-layer instrument testing and multi-layer quality control personnel inspection before leaving the factory. Its normal service life can reach more than ten years.

​✅ minimalist operation​

• The full Chinese menu and shortcut key Settings allow users to independently complete the relocation and debugging

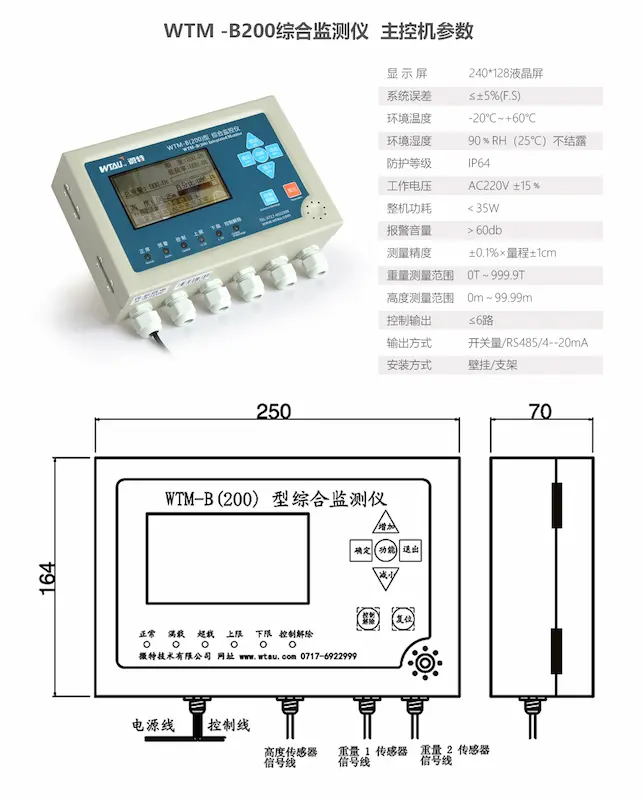

​5. Technical parameters​

​

• ​Control ability​：
  • Relay output: 6-point configuration (contact capacity 7A/250VAC)
  • Extended output: RS485 + 4-20mA
• ​Display interaction​：
  • LCD screen (240×128 resolution)
  • 7-key panel operation (Reset/Confirm/Direction keys)
• ​Environmental protection​：
  • Power supply: AC220V±15%
  • Operating temperature: -20℃ to +60℃
  • Protection grade: IP64
• ​Precision index​：
  • Systematic error: ±0.5%FS

6. Engineering cases​

​A collection of empirical evidence on Global Water Conservancy projects​

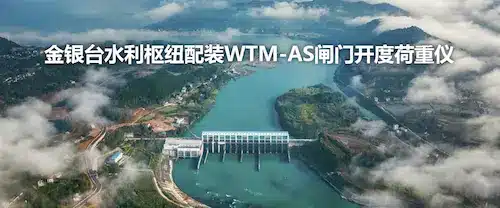

​Case 1: Jinyintai Water Conservancy Hub​

​Case 2: Zhejiang Huadong Electromechanical​

​Case 3: China Power Engineering Corporation​

​Case 4: Water Conservancy and Hydropower of Fujian Province​
